Pannello di controllo 1 angolo EC41-260-0

Pannello di controllo 1 angolo EC41-260-0

Name: Pannello di controllo 1 angolo EC41-260-0
Brand: Configuratore online
SKU: EC41-260-0
Rating: 4.6 (82 reviews)

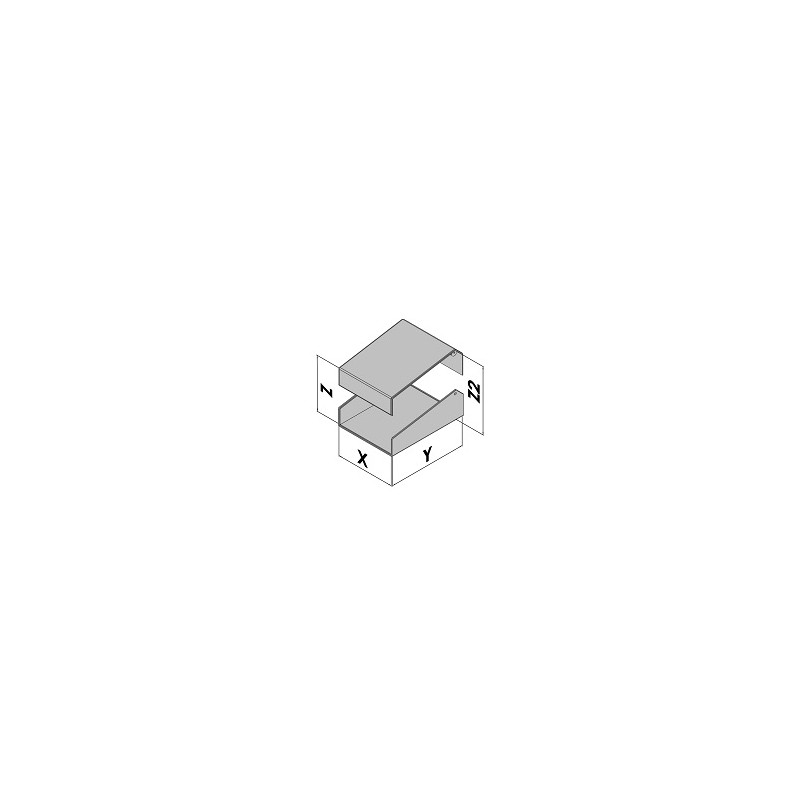

Pannello di controllo su misura. Composto da due pezzi in forma di U (uno con 1 angolo), ruotati di 90°. Chiusura con viti. Il contenitore è smontabile con un cacciavite.

Scheda tecnica

MODELLI		Contenitore da tavalo EC41-2xx

TIPOLOGIA COSTRUZIONE		Pannelli di controllo su misura. Composti da due pezzi in forma di U (uno con 1 angolo), ruotati di 90°. Chiusura con viti. Il contenitore è smontabile con un cacciavite.

Il tuo progetto : Es.: Progetto X Contenitori Plastici

Nome del progetto :^* Es.: Progetto X Contenitori Plastici
Inserire dimensioni (interne in mm)^* Attenzione: Dimensioni interne in mm
X
Y
Z
Z2

Materiale^* ABS: Standard plastic raw material made of ABS / PS-UL: plastic raw material made of flame retardant polystyrene, classified UL94V0
Allegato Any complementary information, that can help us to design your enclosure (i.e. sketches, 2D or 3D drawings, R&D product brief, images etc.)
- File 1 :
- File 2 :

Personalizzazione : The information provided in this form, will allow to generate an instant quote. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure or front panel.

Scanalatura Contrary to standard machined enclosures, the EC enclosure includes all cutouts and necessary millings based on your needs, executed in our in-house production plant: one unique contact, a time saver, an optimised and rapid work flow.

Numero fori (< = 5mm x 5mm) The drilling is a maching process to create a hole in a plastic piece. This hole can be used for a screw, a plug, a socket, a cable passage etc.
N° incavi : (per spine) (> 5mm x 5mm) and < 40mm x 40mm) A cutout is created by a machining process, minimum size 5mm x 5mm and maximum size 40mm x 40mm, allowing the passage of a connector, button, divers cabeling or other usage.
Finestre/ aperture 1: (In mm) (> = 40mm x 40mm) A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.	x
	y
[con finestra in acrilico in 3mm] A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
Finestre/ aperture 2: (In mm) (> = 40mm x 40mm) A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.	x
	y
[con finestra in acrilico in 3mm] A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.
Finestre/ aperture 3: (In mm) (> = 40mm x 40mm) A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.	x
	y
[con finestra in acrilico in 3mm] A window is created by a machining process. Its size is superior to 40mm x 40mm allowing mainly to integrate a display or a touch screen. You have the option to add an acrylic window to protect the electronic component.

Numero ventilazioni (basato su 10 incavi di 50mm) A vent is a set of 10 grooves of 50mm who serves to evacuate the heat generated by the internal components. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure or front panel.
N° di marcature : (basayo su 1 parte incisa di cca. 20 mm) For exemple your logo or technical instructions directly milled into the raw material.
Lamatura 1: (In mm) [Per tastiera articolata] A recess is the machining process that takes away part of the material without penetrating it with a defined debth. A recess allows to create a place holder for i.e. a membrane keyboard or a label.	x
	y
Lamatura 2: (In mm) [Per tastiera articolata] A recess is the machining process that takes away part of the material without penetrating it with a defined debth. A recess allows to create a place holder for i.e. a membrane keyboard or a label.	x
	y
Lamatura 3: (In mm) [Per tastiera articolata] A recess is the machining process that takes away part of the material without penetrating it with a defined debth. A recess allows to create a place holder for i.e. a membrane keyboard or a label.	x
	y
N° pezzi non assemblati : Loose parts are non glued mounting features for the internal equipment of the enclosure (i.e. seperation, blockage etc.)
Lunghezza della nicchia per circuito: Circuit board slots are grooves milled opposite on the internal sides into the plastic. You can slide your PCB (Circuit Board) in those grooves. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.
Lunghezza scanalatura guida di scorrimento: Please indicate the length of the PCB groove / slot.

Montaggio : Contrary to standard machined enclosures, the EC enclosure includes all necessary mounting features based on your needs, executed in our in-house production plant: one unique contact, a time saver, an optimised and rapid work flow.

N° inserti:

An insert is a part made out of brass with a thread (M2,5 - M3), implanted in a standoff or directly in the raw material, which then allows you to fix electronic components. Its use is recommanded in the case of frequent mounting and dissassembling of a component. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.

N° colonnine:

A standoff is a plastique spacer tube of different dimensions, used to fix your electronic components. Its use is recommanded in the case of frequent mounting and dissassembling of a component. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.

N° piedini in gomma: To stabilize or lift your device, you can add rubber feet. The exact location and dimenions will be confirmed later by our construction office during the developement and programming of your custom designed enclosure.
N° punti d'appoggio/barre/traverse: Those are glued parts inside your enclosure, to either hold electronic components, which cannot be mounted on standoffs or to devide, strengthen or stabilize your enclosure.

Finitura: Contrary to standard machined enclosures, the EC enclosure includes all necessary finishings based on your needs, executed in our in-house production plant: one unique contact, a time saver, an optimised and rapid work flow.

Protezione EMI The EMI protection (Electromagnetic Interference) or conductive shield paint, is a paint, based on nickel or copper. Its application creates a Faraday screen, to protect from electric or alternatively electromagnetic externities, and vice versa stops the device from polluting its environement. It also serves to the electric continuity.
Vernicatura The available raw materials are either black or white, but we do offer all solutions for all finishings and colour shades (Paint: all RAL "or corresponding Panton" prepared in our work shop. Finishing: satiné).

Montaggio : (1 strato per colore per superficie) Any marking is done in-house with our digital printers, allowing four-colour print. Marking of an enclosure has mainly 2 goals. Functional: Identifiation, Norms or Instructions. Aestetic: Corporate Identify of the device, embellishing or represensation of the use.
Smalto alta protezione Clear strong protection varnish: For additional protection, we can apply high protection varnis (Finishing: satin)

Others operation Others operation

Forecast quantities Having maximum information regarding your project, allows us to provide adapted and quality advice.

Email* :
